Official TVH Boilerplate Pine Strategy

We maintain a Pine v5 strategy template on GitHub. It already contains the TVH webhook integration — every input you would normally hand-code (exchange, sizing, SL/TP, DCA, leverage, margin mode) is exposed as a TradingView input setting. Drop your entry logic in, get a TVH-ready strategy in under five minutes.

TL;DR

• Repo: tradingview-hub/tvhub-boilerplate-strategy
• One file: tvhub-boilerplate-strategy.pine — paste into Pine Editor, save, add to chart.
• The reference strategy is Parabolic SAR + Regression Channels + Supertrend; replace the entry conditions with your own.
• Alert Message: {{strategy.order.alert_message}} — same dispatch pattern as on Strategy Alerts.

View on GitHub →

What you get

Open the boilerplate and you find:

• A complete TV-Hub input-settings section (token, exchange, pair, sizing, leverage, margin, take-profit ladder, stop-loss, trailing, DCA, advanced flags).
• Runtime buy_command, sell_command, and close_command strings — assembled from the inputs at every bar. No JSON to hand-write.
• A demonstration strategy (Parabolic SAR + Regression Channels + Supertrend) wired with strategy.entry / strategy.close_all calls that already pass alert_message=.
• Visual confirmation: every signal plots on the chart so you can sanity-check before going live.
• Compatible with {{strategy.order.alert_message}} — one TradingView alert handles every event.

Step-by-step setup

1. Open the file. Visit the GitHub repo and open tvhub-boilerplate-strategy.pine. Click Raw, then copy the full contents.

2. Open Pine Editor in TradingView. Bottom panel → Pine Editor → New → Empty strategy.

3. Paste and save. Replace the empty template, click Save (Ctrl+S), name it (e.g. "TVH Boilerplate v1").

4. Add to chart. Click Add to chart. The strategy plot appears on the active symbol.

5. Configure the inputs. Click the gear icon next to the strategy name in the chart. Fill in:





6. Replace the entry condition. Scroll down past the input section to the "Open orders" block. The default uses the demo PSAR/Regression strategy. Replace buySignal and sellSignal with your own conditions (see Customising the entry logic below).

7. Create the TV alert. Bell icon → Create Alert → Condition = your strategy. Tick Webhook URL, paste the TVH endpoint. Message: literally {{strategy.order.alert_message}}.

8. Smoke test. Run on the 1-minute chart of a low-cap pair you do not mind hitting. Watch the TVH Activity Log to confirm receipt.

Input fields reference

These are the inputs exposed in the current boilerplate (tvhub-boilerplate-strategy.pine, extracted directly from the GitHub source):

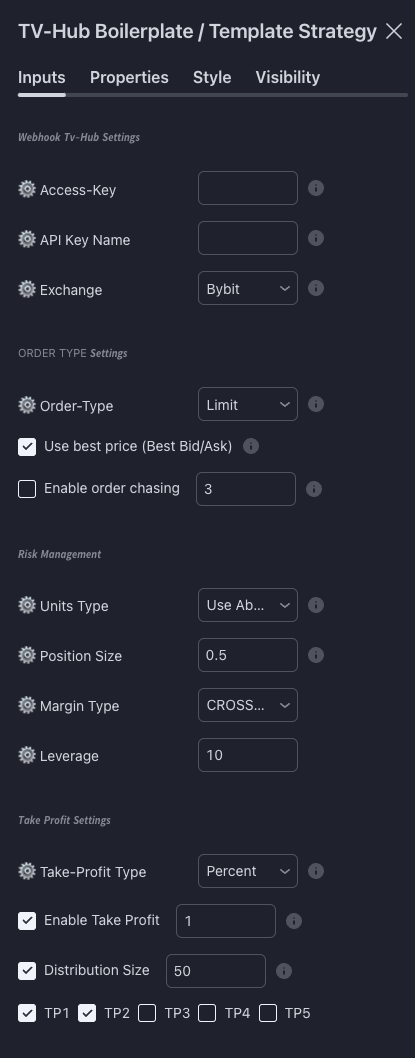

Webhook TV-Hub Settings

Input	Type	Notes
Access-Key	string	Your TVH user token. Find it on the Account & API Keys page.
API Key Name	string	The label of the API key as saved on TVH (e.g. binance-main).
Exchange	enum	Bybit, Bybit-Testnet, Binance, Binance-Futures, Binance-Futures-Testnet, Bitmex, Bitmex-Testnet, OKX.

Order Type

Input	Type	Notes
Order-Type	enum	Market or Limit.
Use best price (Best Bid/Ask)	bool	When Limit, sets limitPriceType:"bestPrice".
Enable order chasing	bool	When Limit + Best Bid/Ask, turns on chaseLimitOrder:true.
Order chasing interval	float (sec)	Default 20 s. Min 1 s, total chase count fixed (180 → 1h budget at default).

Risk Management

Input	Type	Notes
Units Type	enum	Use Fixed Size (USD), Use Absolute Value, Use Percent (Available), Use Percent (Wallet), Risk.
Position Size	float	Interpreted per Units Type — see the Sizing page.
Margin Type	enum	CROSSED or ISOLATED. Lowercase on the wire (cross / isolated) — the boilerplate handles the casing.
Leverage	int	1–125. Defaults to 10.

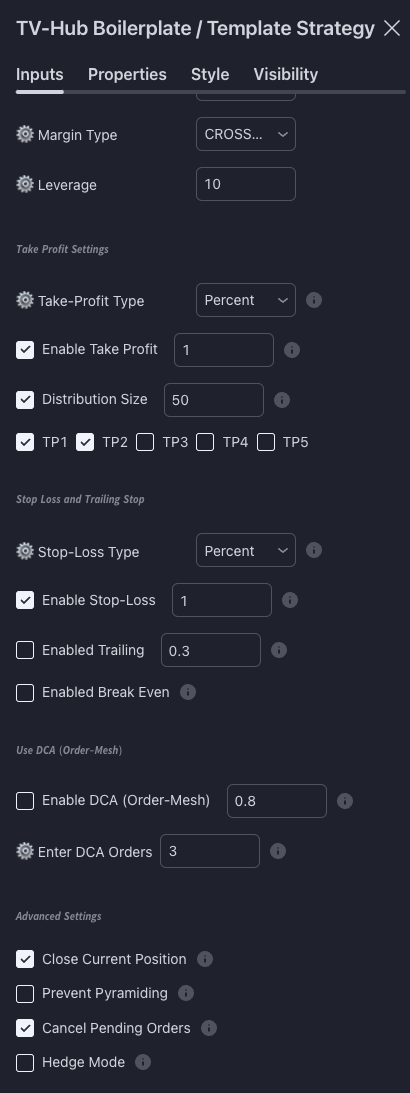

Take Profit

Input	Type	Notes
Take-Profit Type	enum	Percent or Absolute.
Enable Take Profit + Distance	bool + float	Master toggle + first-target distance (e.g. 0.3 = 0.3 %).
Distribution Size	bool + float	When on, splits the position across enabled TPs by percentage.
TP1 … TP5	bool	Enable additional ladder rungs. Each rung's distance is set per row.

Stop Loss and Trailing

Input	Type	Notes
Stop-Loss Type	enum	Percent or Absolute.
Enable Stop-Loss + Value	bool + float	Master toggle + SL distance.
Enabled Trailing + Value	bool + float	Trailing stop percent (Pine's trailingPercent).
Enabled Break Even	bool	Adds break-even SL movement (exchange support varies — see Stop Loss).

DCA Order Mesh

Input	Type	Notes
DCA distance %	float	Spacing between DCA legs.
Enter DCA Orders	int	Number of additional limit legs (1–10).

Advanced

Input	Type	Notes
Close Current Position	bool	Closes opposite-side positions on a flip. Maps to closePosition:true.
Prevent Pyramiding	bool	Blocks stacking same-direction entries.
Cancel Pending Orders	bool	Cancels pre-existing limit orders before placing the new one.
Hedge Mode	bool	Sets hedgeMode:true (used by Binance Futures). Bybit hedge is account-level and ignores this flag.

The complete dropdown list lives in the source — when in doubt, open the Pine file and read the input.*(...) declarations directly.

Customising the entry logic

Scroll past the input section. You will see a comment block:

//==============================================================================//
//======================= End TV-Hub Input Settings ============================//
//==============================================================================//

//==============================================================================//
// The following strategy is just for demonstration purpose.
// Start to build your own trade logic here.
//=========================|====|====|====|====|====|===========================//

Below that, the demo defines:

buySignal  = ...   // PSAR / Regression / Supertrend combination
sellSignal = ...

And lower down:

if buySignal
    strategy.entry("Long",  strategy.long,  alert_message=buy_command)
    // ... TP/SL bookkeeping ...

if sellSignal
    strategy.entry("Short", strategy.short, alert_message=sell_command)
    // ... TP/SL bookkeeping ...

To plug in your own logic, replace only the buySignal / sellSignal expressions. The strategy.entry(...) lines and the entire input section above stay untouched.

Minimal replacement — EMA crossover:

// Replace the demo signals near the bottom of the file.
fast       = ta.ema(close, 9)
slow       = ta.ema(close, 21)
buySignal  = ta.crossover(fast, slow)
sellSignal = ta.crossunder(fast, slow)

With that one swap, every input on the gear icon now drives an EMA-crossover bot through TVH.

Updating the boilerplate

The repo evolves. Watch it (GitHub → Watch → Releases only) to get notifications when a new version ships. Releases include:

• New input fields (e.g. when TVH adds a new trade-command parameter).
• Bug fixes in the JSON assembly.
• Compatibility tweaks for new Pine versions.

Upgrade procedure:

1. Save your customised strategy under a versioned name (e.g. My Strategy v3 - 2026-05).
2. Copy the new boilerplate from GitHub.
3. Diff against your saved version. Re-apply your buySignal / sellSignal block.
4. Save as a new version. Re-attach the alert.

Contributing

Pull requests are welcome — typo fixes, new input options, new exchange entries in the dropdown. Open an issue first for larger changes. See the repo's readme.md for contribution guidelines.

Next

• Strategy Alerts — how {{strategy.order.alert_message}} works under the hood.
• Strategy Alerts → closed-source automation — when you cannot edit the Pine code at all.
• Strategy Cookbook — eight stand-alone templates that bypass the boilerplate.
