BitMex — Futures with Testnet

BitMex was the first major crypto derivatives exchange and still runs the cleanest Bitcoin-margined futures market in the industry. TVH supports BitMex's live and testnet environments as two separate exchange identifiers. No spot trading on BitMex — futures only.

TL;DR

• 2 exchange identifiers: bitmex, bitmex-testnet
• No spot trading — BitMex is derivatives-only
• Symbol uses XBT (not BTC) — legacy naming
• Testnet has full feature parity — separate site, separate API key
• All variants use https://alerts.tv-hub.org

Open Bitmex accountAffiliate link — TradingView Hub may earn a commission at no cost to you.

Variants

Live

BitMex Live

Field	Value
Exchange identifier	bitmex
Webhook URL	https://alerts.tv-hub.org
Symbol format	XBTUSD (perpetual), XBTM26 (quarterly) — XBT not BTC
Contract types	Perpetual + Quarterly Futures
Max leverage	100× on XBT pairs, lower on alts
Permissions	Order + OrderCancel
Sub-account support	❌ Not supported in TVH
Demo support	Use bitmex-testnet identifier

Webhook URL:

API key creation

BitMex has no third-party binding; an IP/CIDR restriction is optional. No passphrase.

1. Log in at bitmex.com and open Account from the top navigation.

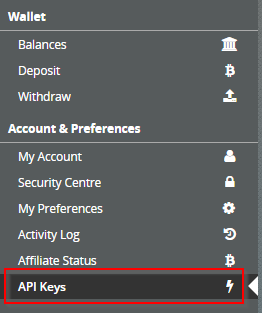

2. In the Account sidebar, open API Keys.

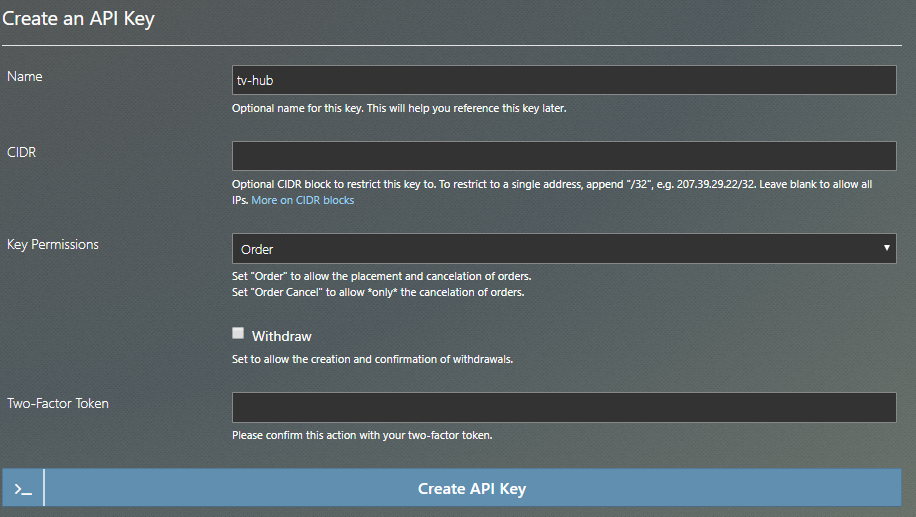

3. Click Create an API Key, give it a name, set Key Permissions to Order (this allows placing and cancelling orders), and leave Withdraw off. CIDR is optional — leave it blank to allow all IPs, or pin it to the TVH IPs. Confirm with your 2FA token and click Create API Key.



4. Write down the Secret immediately — BitMex shows it only once.

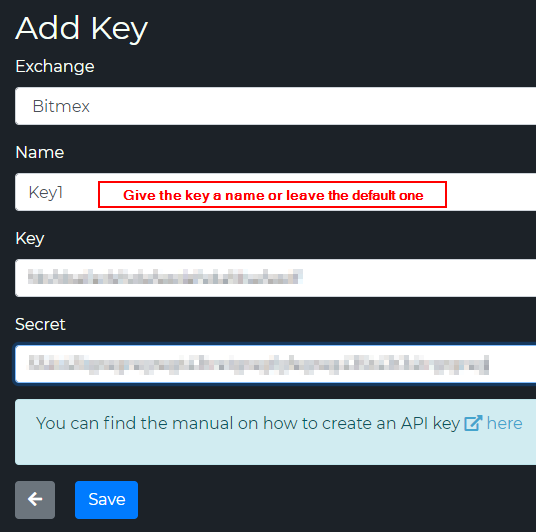

5. Add the Key + Secret to TVH at Account → Settings → API Keys with exchange bitmex (no passphrase needed).



Symbol format reference

Pair	Perpetual	Quarterly (Jun 2026)
BTC/USD	XBTUSD	XBTM26
ETH/USD	ETHUSD	ETHM26
SOL/USD	SOLUSD	—

XBT is the legacy ISO-4217 unofficial code for Bitcoin. BitMex never moved to BTC; the codebase still uses XBT. Every BTC pair on BitMex starts with XBT instead.

Example payload:

{
  "token": "your-tvh-token",
  "exchange": "bitmex",
  "pair": "XBTUSD",
  "isMarket": true,
  "isBuy": true,
  "units": 100,
  "leverage": 10,
  "marginType": "isolated"
}

BitMex sizes in contracts

BitMex contracts are sized in USD value per contract (e.g. 1 XBTUSD contract = $1 of BTC exposure). When you set "units": 100, that's 100 contracts = $100 of notional. This differs from most other exchanges where units is the underlying coin amount.

Testnet

BitMex Testnet

Field	Value
Exchange identifier	bitmex-testnet
Webhook URL	https://alerts.tv-hub.org
Site	testnet.bitmex.com
Symbol format	Same as live (XBTUSD, etc.)
Test funds	Free test-XBT from BitMex faucet
Feature parity	Full — same payload shape works

BitMex Testnet runs on a fully separate domain with its own accounts and its own API keys. Use bitmex-testnet as the exchange identifier.

Example payload:

{
  "token": "your-tvh-token",
  "exchange": "bitmex-testnet",
  "pair": "XBTUSD",
  "isMarket": true,
  "isBuy": true,
  "units": 100,
  "leverage": 5
}

Setup

Create an account at testnet.bitmex.com (separate from live) and use the faucet to get free test-XBT. The API-key flow is identical to live — just on the testnet site.

1. On the testnet site, open Account from the top navigation.



2. Open API Keys in the Account sidebar.



3. Click Create an API Key, name it, set Key Permissions to Order, leave Withdraw off (CIDR optional), and confirm with 2FA.



4. Write down the Secret immediately — it's shown only once.

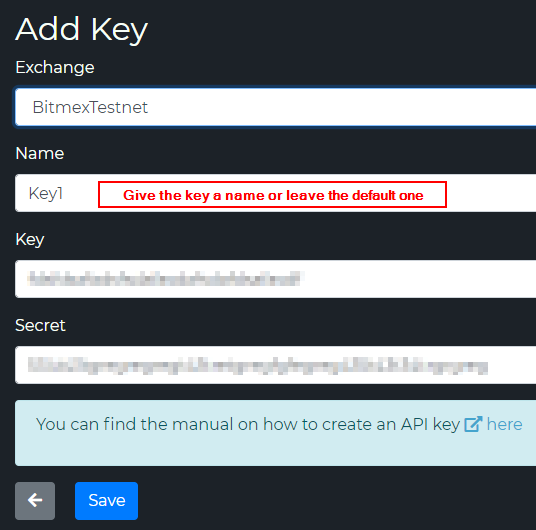

5. Add the Key + Secret to TVH with exchange bitmex-testnet (do not tick Demo Account — the testnet identifier already routes to testnet), then use "exchange": "bitmex-testnet" in your payload.



Common BitMex quirks

• XBT, not BTC. Every Bitcoin pair starts with XBT. Don't paste BTCUSD — it won't resolve.
• Cross-margin via the leverage slider. On BitMex, dragging the leverage slider all the way to the left (= 0) sets cross-margin. Any non-zero value sets isolated at that leverage. TVH respects whatever you set in marginType + leverage.
• Contracts, not coins. BitMex sizes positions in contracts (USD-denominated value), not in BTC. "units": 100 on XBTUSD = $100 notional, not 100 BTC.
• useFixedSize is awkward. Since contracts are USD-denominated, "fixed quote size" already maps to the contract count. TVH still accepts the flag but it's redundant on BitMex.
• 100% Bitcoin-margined PnL. All positions settle in XBT. Your PnL is denominated in XBT, not USD.
• No sub-accounts in TVH. BitMex has sub-accounts on the exchange, but TVH doesn't currently route to them.

Feature support

Feature	Live	Testnet
Market & Limit orders	✅	✅
Multiple TPs	✅	✅
Trailing Stop	✅	✅
Scaled Orders	✅	✅
useFixedSize	✅ (redundant — see above)	✅
useEntireAccountBalance	❌	❌
Hedge Mode	❌ Not supported	❌
Sub-Accounts	❌	❌
Limit Order Chasing	✅	✅
Demo Account checkbox	❌ (use testnet id)	❌

Full matrix: Exchange Quirks Reference.
